#- apache 계정 생성
sudo useradd apache -b /home -s /bin/bash
#- 현재 접속 계정이 root일 시
sudo echo "apache1234\!" | passwd --stdin apache
#- 현재 접속 계정이 root가 아닐 시
sudo passwd apache
apache1234!
#- 계정권한조율은 References(Sudoers)를 참고
설정이유 : * apache 계정으로 package 설치를 편하게 하기위해
* 설정 하고 싶지 않을 시, root권한으로 작업 진행

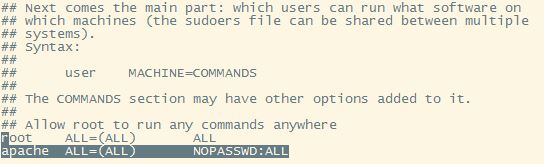

sudo vi /etc/sudoers
apache ALL=(ALL) NOPASSWD:ALL
mkdir -p ${BASE_DIR}/appsw/backup
cd ${BASE_DIR}/appsw
#- 설치 시, 서로 package가 호환되는지 여부를 released 내역을 확인하여 설치 진행
wget http://archive.apache.org/dist/httpd/httpd-2.4.34.tar.gz
wget https://archive.apache.org/dist/apr/apr-1.6.3.tar.gz
wget https://archive.apache.org/dist/apr/apr-util-1.6.1.tar.gz
wget https://ftp.pcre.org/pub/pcre/pcre-8.42.tar.gz
wget https://archive.apache.org/dist/tomcat/tomcat-connectors/jk/tomcat-connectors-1.2.43-src.tar.gz
tar -xzf apr-1.6.3.tar.gz; tar -xzf apr-util-1.6.1.tar.gz; tar -xzf httpd-2.4.34.tar.gz; tar -xzf pcre-8.42.tar.gz; tar -xzf tomcat-connectors-1.2.43-src.tar.gz
mv *.tar.gz ${BASE_DIR}/appsw/backup/
mv ${BASE_DIR}/appsw/apr-1.6.3 ${BASE_DIR}/appsw/httpd-2.4.34
mv ${BASE_DIR}/appsw/apr-util-1.6.1 ${BASE_DIR}/appsw/httpd-2.4.34
mv ${BASE_DIR}/appsw/tomcat-connectors-1.2.43-src ${BASE_DIR}/appsw/httpd-2.4.34
mv ${BASE_DIR}/appsw/pcre-8.42 ${BASE_DIR}/appsw/httpd-2.4.34
3. 설치 진행(본작업)
cd ${WEB_DIR}/apr-1.6.3
./configure --prefix=${WEB_DIR}/apr-1.6.3
make clean; make; make install
cd ${WEB_DIR}/apr-util-1.6.1
./configure --prefix=${WEB_DIR}/apr-util-1.6.1 --with-apr=${WEB_DIR}/apr-1.6.3
make clean; make; make install
cd ${WEB_DIR}/pcre-8.42
./configure --prefix=${WEB_DIR}/pcre-8.42
make clean; make; make install
cd ${WEB_DIR}
./configure --prefix=${APP_DIR} --with-apr=${WEB_DIR}/apr-1.6.3 --with-apr-util=${WEB_DIR}/apr-util-1.6.1 --with-pcre=${WEB_DIR}/pcre-8.42 --enable-ssl --with-ssl=/usr/bin/openssl
make clean; make; make install
cd ${WEB_DIR}/tomcat-connectors-1.2.43-src/native
./buildconf.sh
vi ${APP_DIR}/bin/apxs
만약, 아래와 같이 perl 이 아닐 시, 수정진행
#!/replace/with/path/to/perl/interpreter -w => #! /usr/bin/perl -w
./configure --with-apxs=${APP_DIR}/bin/apxs
make clean; make; make install
#
# This is the main Apache HTTP server configuration file. It contains the
# configuration directives that give the server its instructions.
# See <URL:http://httpd.apache.org/docs/2.4/> for detailed information.
# In particular, see
# <URL:http://httpd.apache.org/docs/2.4/mod/directives.html>
# for a discussion of each configuration directive.
#
# Do NOT simply read the instructions in here without understanding
# what they do. They're here only as hints or reminders. If you are unsure
# consult the online docs. You have been warned.
#
# Configuration and logfile names: If the filenames you specify for many
# of the server's control files begin with "/" (or "drive:/" for Win32), the
# server will use that explicit path. If the filenames do *not* begin
# with "/", the value of ServerRoot is prepended -- so "logs/access_log"
# with ServerRoot set to "/usr/local/apache2" will be interpreted by the
# server as "/usr/local/apache2/logs/access_log", whereas "/logs/access_log"
# will be interpreted as '/logs/access_log'.
#
# ServerRoot: The top of the directory tree under which the server's
# configuration, error, and log files are kept.
#
# Do not add a slash at the end of the directory path. If you point
# ServerRoot at a non-local disk, be sure to specify a local disk on the
# Mutex directive, if file-based mutexes are used. If you wish to share the
# same ServerRoot for multiple httpd daemons, you will need to change at
# least PidFile.
#
ServerRoot "/home/apache/apache"
#
# Mutex: Allows you to set the mutex mechanism and mutex file directory
# for individual mutexes, or change the global defaults
#
# Uncomment and change the directory if mutexes are file-based and the default
# mutex file directory is not on a local disk or is not appropriate for some
# other reason.
#
# Mutex default:logs
#
# Listen: Allows you to bind Apache to specific IP addresses and/or
# ports, instead of the default. See also the <VirtualHost>
# directive.
#
# Change this to Listen on specific IP addresses as shown below to
# prevent Apache from glomming onto all bound IP addresses.
#
#Listen 12.34.56.78:80
Listen 80
Listen 443
#
# Dynamic Shared Object (DSO) Support
#
# To be able to use the functionality of a module which was built as a DSO you
# have to place corresponding `LoadModule' lines at this location so the
# directives contained in it are actually available _before_ they are used.
# Statically compiled modules (those listed by `httpd -l') do not need
# to be loaded here.
#
# Example:
# LoadModule foo_module modules/mod_foo.so
#
LoadModule authn_file_module modules/mod_authn_file.so
#LoadModule authn_dbm_module modules/mod_authn_dbm.so
#LoadModule authn_anon_module modules/mod_authn_anon.so
#LoadModule authn_dbd_module modules/mod_authn_dbd.so
#LoadModule authn_socache_module modules/mod_authn_socache.so
LoadModule authn_core_module modules/mod_authn_core.so
LoadModule authz_host_module modules/mod_authz_host.so
LoadModule authz_groupfile_module modules/mod_authz_groupfile.so
LoadModule authz_user_module modules/mod_authz_user.so
#LoadModule authz_dbm_module modules/mod_authz_dbm.so
#LoadModule authz_owner_module modules/mod_authz_owner.so
#LoadModule authz_dbd_module modules/mod_authz_dbd.so
LoadModule authz_core_module modules/mod_authz_core.so
LoadModule access_compat_module modules/mod_access_compat.so
LoadModule auth_basic_module modules/mod_auth_basic.so
#LoadModule auth_form_module modules/mod_auth_form.so
#LoadModule auth_digest_module modules/mod_auth_digest.so
#LoadModule allowmethods_module modules/mod_allowmethods.so
#LoadModule file_cache_module modules/mod_file_cache.so
#LoadModule cache_module modules/mod_cache.so
#LoadModule cache_disk_module modules/mod_cache_disk.so
#LoadModule cache_socache_module modules/mod_cache_socache.so
LoadModule socache_shmcb_module modules/mod_socache_shmcb.so
#LoadModule socache_dbm_module modules/mod_socache_dbm.so
#LoadModule socache_memcache_module modules/mod_socache_memcache.so
#LoadModule watchdog_module modules/mod_watchdog.so
#LoadModule macro_module modules/mod_macro.so
#LoadModule dbd_module modules/mod_dbd.so
#LoadModule dumpio_module modules/mod_dumpio.so
#LoadModule buffer_module modules/mod_buffer.so
#LoadModule ratelimit_module modules/mod_ratelimit.so
LoadModule reqtimeout_module modules/mod_reqtimeout.so
#LoadModule ext_filter_module modules/mod_ext_filter.so
#LoadModule request_module modules/mod_request.so
#LoadModule include_module modules/mod_include.so
LoadModule filter_module modules/mod_filter.so
#LoadModule substitute_module modules/mod_substitute.so
#LoadModule sed_module modules/mod_sed.so
#LoadModule deflate_module modules/mod_deflate.so
LoadModule mime_module modules/mod_mime.so
LoadModule log_config_module modules/mod_log_config.so
#LoadModule log_debug_module modules/mod_log_debug.so
#LoadModule logio_module modules/mod_logio.so
LoadModule env_module modules/mod_env.so
#LoadModule expires_module modules/mod_expires.so
LoadModule headers_module modules/mod_headers.so
#LoadModule unique_id_module modules/mod_unique_id.so
LoadModule setenvif_module modules/mod_setenvif.so
LoadModule version_module modules/mod_version.so
#LoadModule remoteip_module modules/mod_remoteip.so
LoadModule proxy_module modules/mod_proxy.so
LoadModule proxy_connect_module modules/mod_proxy_connect.so
#LoadModule proxy_ftp_module modules/mod_proxy_ftp.so
LoadModule proxy_http_module modules/mod_proxy_http.so
#LoadModule proxy_fcgi_module modules/mod_proxy_fcgi.so
#LoadModule proxy_scgi_module modules/mod_proxy_scgi.so
#LoadModule proxy_uwsgi_module modules/mod_proxy_uwsgi.so
#LoadModule proxy_fdpass_module modules/mod_proxy_fdpass.so
#LoadModule proxy_wstunnel_module modules/mod_proxy_wstunnel.so
#LoadModule proxy_ajp_module modules/mod_proxy_ajp.so
#LoadModule proxy_balancer_module modules/mod_proxy_balancer.so
#LoadModule proxy_express_module modules/mod_proxy_express.so
#LoadModule proxy_hcheck_module modules/mod_proxy_hcheck.so
#LoadModule session_module modules/mod_session.so
#LoadModule session_cookie_module modules/mod_session_cookie.so
#LoadModule session_dbd_module modules/mod_session_dbd.so
#LoadModule slotmem_shm_module modules/mod_slotmem_shm.so
LoadModule ssl_module modules/mod_ssl.so
#LoadModule lbmethod_byrequests_module modules/mod_lbmethod_byrequests.so
#LoadModule lbmethod_bytraffic_module modules/mod_lbmethod_bytraffic.so
#LoadModule lbmethod_bybusyness_module modules/mod_lbmethod_bybusyness.so
#LoadModule lbmethod_heartbeat_module modules/mod_lbmethod_heartbeat.so
LoadModule unixd_module modules/mod_unixd.so
#LoadModule dav_module modules/mod_dav.so
LoadModule status_module modules/mod_status.so
LoadModule autoindex_module modules/mod_autoindex.so
#LoadModule info_module modules/mod_info.so
#LoadModule cgid_module modules/mod_cgid.so
#LoadModule dav_fs_module modules/mod_dav_fs.so
#LoadModule vhost_alias_module modules/mod_vhost_alias.so
#LoadModule negotiation_module modules/mod_negotiation.so
LoadModule dir_module modules/mod_dir.so
#LoadModule actions_module modules/mod_actions.so
#LoadModule speling_module modules/mod_speling.so
#LoadModule userdir_module modules/mod_userdir.so
LoadModule alias_module modules/mod_alias.so
LoadModule rewrite_module modules/mod_rewrite.so
LoadModule jk_module modules/mod_jk.so
<IfModule unixd_module>
#
# If you wish httpd to run as a different user or group, you must run
# httpd as root initially and it will switch.
#
# User/Group: The name (or #number) of the user/group to run httpd as.
# It is usually good practice to create a dedicated user and group for
# running httpd, as with most system services.
#
User apache
Group apache
</IfModule>
# 'Main' server configuration
#
# The directives in this section set up the values used by the 'main'
# server, which responds to any requests that aren't handled by a
# <VirtualHost> definition. These values also provide defaults for
# any <VirtualHost> containers you may define later in the file.
#
# All of these directives may appear inside <VirtualHost> containers,
# in which case these default settings will be overridden for the
# virtual host being defined.
#
#
# ServerAdmin: Your address, where problems with the server should be
# e-mailed. This address appears on some server-generated pages, such
# as error documents. e.g. admin@your-domain.com
#
ServerAdmin rord88@daum.net
#
# ServerName gives the name and port that the server uses to identify itself.
# This can often be determined automatically, but we recommend you specify
# it explicitly to prevent problems during startup.
#
# If your host doesn't have a registered DNS name, enter its IP address here.
#
ServerName localhost
#
# Deny access to the entirety of your server's filesystem. You must
# explicitly permit access to web content directories in other
# <Directory> blocks below.
#
<Directory />
AllowOverride AuthConfig
#Require all denied
Require all granted
</Directory>
#
# Note that from this point forward you must specifically allow
# particular features to be enabled - so if something's not working as
# you might expect, make sure that you have specifically enabled it
# below.
#
#
# DocumentRoot: The directory out of which you will serve your
# documents. By default, all requests are taken from this directory, but
# symbolic links and aliases may be used to point to other locations.
#
DocumentRoot "/home/apache/apache/htdocs"
<Directory "/home/apache/apache/htdocs">
#
# Possible values for the Options directive are "None", "All",
# or any combination of:
# Indexes Includes FollowSymLinks SymLinksifOwnerMatch ExecCGI MultiViews
#
# Note that "MultiViews" must be named *explicitly* --- "Options All"
# doesn't give it to you.
#
# The Options directive is both complicated and important. Please see
# http://httpd.apache.org/docs/2.4/mod/core.html#options
# for more information.
#
#Options Indexes FollowSymLinks
#
# AllowOverride controls what directives may be placed in .htaccess files.
# It can be "All", "None", or any combination of the keywords:
# AllowOverride FileInfo AuthConfig Limit
#
AllowOverride AuthConfig
#
# Controls who can get stuff from this server.
#
Require all granted
</Directory>
#
# DirectoryIndex: sets the file that Apache will serve if a directory
# is requested.
#
<IfModule dir_module>
DirectoryIndex index.html index.jsp index.do
</IfModule>
#
# The following lines prevent .htaccess and .htpasswd files from being
# viewed by Web clients.
#
<Files ".ht*">
Require all denied
</Files>
#
# ErrorLog: The location of the error log file.
# If you do not specify an ErrorLog directive within a <VirtualHost>
# container, error messages relating to that virtual host will be
# logged here. If you *do* define an error logfile for a <VirtualHost>
# container, that host's errors will be logged there and not here.
#
#ErrorLog "logs/error_log/error_log"
ErrorLog "|/home/apache/apache/bin/rotatelogs /home/apache/apache/logs/error_log/error.%Y%m%d.log 86400"
#
# LogLevel: Control the number of messages logged to the error_log.
# Possible values include: debug, info, notice, warn, error, crit,
# alert, emerg.
#
LogLevel warn
<IfModule log_config_module>
#
# The following directives define some format nicknames for use with
# a CustomLog directive (see below).
#
LogFormat "%h %l %u %t \"%r\" %>s %b %T \"%{Referer}i\" \"%{User-Agent}i\"" combined
LogFormat "%h %l %u %t \"%r\" %>s %b %T" common
<IfModule logio_module>
# You need to enable mod_logio.c to use %I and %O
LogFormat "%h %l %u %t \"%r\" %>s %b %T \"%{Referer}i\" \"%{User-Agent}i\" %I %O" combinedio
</IfModule>
#
# The location and format of the access logfile (Common Logfile Format).
# If you do not define any access logfiles within a <VirtualHost>
# container, they will be logged here. Contrariwise, if you *do*
# define per-<VirtualHost> access logfiles, transactions will be
# logged therein and *not* in this file.
#
#CustomLog "logs/access_log/access_log" common
SetEnvIf Request_URI "favicon.ico" do_not_log
CustomLog "|/home/apache/apache/bin/rotatelogs /home/apache/apache/logs/access_log/access.%Y%m%d.log 86400" combined env=!do_not_log
#
# If you prefer a logfile with access, agent, and referer information
# (Combined Logfile Format) you can use the following directive.
#
#CustomLog "logs/access_log" combined
</IfModule>
<IfModule alias_module>
#
# Redirect: Allows you to tell clients about documents that used to
# exist in your server's namespace, but do not anymore. The client
# will make a new request for the document at its new location.
# Example:
# Redirect permanent /foo http://www.example.com/bar
#
# Alias: Maps web paths into filesystem paths and is used to
# access content that does not live under the DocumentRoot.
# Example:
# Alias /webpath /full/filesystem/path
#
# If you include a trailing / on /webpath then the server will
# require it to be present in the URL. You will also likely
# need to provide a <Directory> section to allow access to
# the filesystem path.
#
# ScriptAlias: This controls which directories contain server scripts.
# ScriptAliases are essentially the same as Aliases, except that
# documents in the target directory are treated as applications and
# run by the server when requested rather than as documents sent to the
# client. The same rules about trailing "/" apply to ScriptAlias
# directives as to Alias.
#
ScriptAlias /cgi-bin/ "/home/apache/apache/cgi-bin/"
</IfModule>
<IfModule cgid_module>
#
# ScriptSock: On threaded servers, designate the path to the UNIX
# socket used to communicate with the CGI daemon of mod_cgid.
#
#Scriptsock cgisock
</IfModule>
#
# "/apache/apache/cgi-bin" should be changed to whatever your ScriptAliased
# CGI directory exists, if you have that configured.
#
<Directory "/home/apache/apache/cgi-bin">
AllowOverride AuthConfig
Options -Indexes -FollowSymLinks -MultiViews -ExecCGI
Order allow,deny
Deny from all
#AllowOverride AuthConfig
#Options None
#Require all granted
</Directory>
<IfModule headers_module>
#
# Avoid passing HTTP_PROXY environment to CGI's on this or any proxied
# backend servers which have lingering "httpoxy" defects.
# 'Proxy' request header is undefined by the IETF, not listed by IANA
#
RequestHeader unset Proxy early
</IfModule>
<IfModule mime_module>
#
# TypesConfig points to the file containing the list of mappings from
# filename extension to MIME-type.
#
TypesConfig conf/mime.types
#
# AddType allows you to add to or override the MIME configuration
# file specified in TypesConfig for specific file types.
#
#AddType application/x-gzip .tgz
#
# AddEncoding allows you to have certain browsers uncompress
# information on the fly. Note: Not all browsers support this.
#
#AddEncoding x-compress .Z
#AddEncoding x-gzip .gz .tgz
#
# If the AddEncoding directives above are commented-out, then you
# probably should define those extensions to indicate media types:
#
AddType application/x-compress .Z
AddType application/x-gzip .gz .tgz
#
# AddHandler allows you to map certain file extensions to "handlers":
# actions unrelated to filetype. These can be either built into the server
# or added with the Action directive (see below)
#
# To use CGI scripts outside of ScriptAliased directories:
# (You will also need to add "ExecCGI" to the "Options" directive.)
#
#AddHandler cgi-script .cgi
# For type maps (negotiated resources):
#AddHandler type-map var
#
# Filters allow you to process content before it is sent to the client.
#
# To parse .shtml files for server-side includes (SSI):
# (You will also need to add "Includes" to the "Options" directive.)
#
#AddType text/html .shtml
#AddOutputFilter INCLUDES .shtml
</IfModule>
#
# The mod_mime_magic module allows the server to use various hints from the
# contents of the file itself to determine its type. The MIMEMagicFile
# directive tells the module where the hint definitions are located.
#
#MIMEMagicFile conf/magic
#
# Customizable error responses come in three flavors:
# 1) plain text 2) local redirects 3) external redirects
#
# Some examples:
#ErrorDocument 500 "The server made a boo boo."
#ErrorDocument 404 /missing.html
#ErrorDocument 404 "/cgi-bin/missing_handler.pl"
#ErrorDocument 402 http://www.example.com/subscription_info.html
#
ErrorDocument 400 "/etc/error.html"
ErrorDocument 401 "/etc/error.html"
ErrorDocument 402 "/etc/error.html"
ErrorDocument 403 "/etc/error.html"
ErrorDocument 404 "/etc/error.html"
ErrorDocument 405 "/etc/error.html"
ErrorDocument 500 "/etc/error.html"
ErrorDocument 501 "/etc/error.html"
ErrorDocument 503 "/etc/error.html"
#
# MaxRanges: Maximum number of Ranges in a request before
# returning the entire resource, or one of the special
# values 'default', 'none' or 'unlimited'.
# Default setting is to accept 200 Ranges.
#MaxRanges unlimited
#
# EnableMMAP and EnableSendfile: On systems that support it,
# memory-mapping or the sendfile syscall may be used to deliver
# files. This usually improves server performance, but must
# be turned off when serving from networked-mounted
# filesystems or if support for these functions is otherwise
# broken on your system.
# Defaults: EnableMMAP On, EnableSendfile Off
#
#EnableMMAP off
#EnableSendfile on
# Supplemental configuration
#
# The configuration files in the conf/extra/ directory can be
# included to add extra features or to modify the default configuration of
# the server, or you may simply copy their contents here and change as
# necessary.
# connecting ajp setting (mod_jk)
Include conf/extra/mod_jk.conf
# Server-pool management (MPM specific)
#Include conf/extra/httpd-mpm.conf
# Multi-language error messages
#Include conf/extra/httpd-multilang-errordoc.conf
# Fancy directory listings
#Include conf/extra/httpd-autoindex.conf
# Language settings
#Include conf/extra/httpd-languages.conf
# User home directories
#Include conf/extra/httpd-userdir.conf
# Real-time info on requests and configuration
#Include conf/extra/httpd-info.conf
# Virtual hosts
Include conf/extra/httpd-vhosts.conf
# Local access to the Apache HTTP Server Manual
#Include conf/extra/httpd-manual.conf
# Distributed authoring and versioning (WebDAV)
#Include conf/extra/httpd-dav.conf
# Various default settings
#Include conf/extra/httpd-default.conf
# Configure mod_proxy_html to understand HTML4/XHTML1
#<IfModule proxy_html_module>
#Include conf/extra/proxy-html.conf
#</IfModule>
# Secure (SSL/TLS) connections
Include conf/extra/httpd-ssl.conf
# Note: The following must must be present to support
# starting without SSL on platforms with no /dev/random equivalent
# but a statically compiled-in mod_ssl.
#
<IfModule ssl_module>
SSLRandomSeed startup builtin
SSLRandomSeed connect builtin
</IfModule>
<Location /admin>
Order allow,deny
Deny from all
</Location>
<Location /admin-console>
Order allow,deny
Deny from all
</Location>
<Location /console>
Order allow,deny
Deny from all
</Location>
Redirect 404 /favicon.ico
<Location /favicon.ico>
ErrorDocument 404 "No favicon"
Deny from all
</Location>
TraceEnable Off
LimitRequestBody 104857600
ServerTokens Prod
<Directory "/home/apache/web">
AllowOverride AuthConfig
LimitRequestBody 104857600
<LimitExcept GET POST>
Order allow,deny
Deny from all
</LimitExcept>
</Directory>
<Directory "/home/apache/web">
AllowOverride AuthConfig
LimitRequestBody 104857600
<LimitExcept GET POST>
Order allow,deny
Deny from all
</LimitExcept>
</Directory>
vi ${APP_DIR}/conf/extra/httpd-vhosts.conf
# Virtual Hosts
#
# Required modules: mod_log_config
# If you want to maintain multiple domains/hostnames on your
# machine you can setup VirtualHost containers for them. Most configurations
# use only name-based virtual hosts so the server doesn't need to worry about
# IP addresses. This is indicated by the asterisks in the directives below.
#
# Please see the documentation at
# <URL:http://httpd.apache.org/docs/2.4/vhosts/>
# for further details before you try to setup virtual hosts.
#
# You may use the command line option '-S' to verify your virtual host
# configuration.
#
# VirtualHost example:
# Almost any Apache directive may go into a VirtualHost container.
# The first VirtualHost section is used for all requests that do not
# match a ServerName or ServerAlias in any <VirtualHost> block.
#
#--------------------------
#- host : rord.test.com
#--------------------------
<VirtualHost *:80>
ServerAdmin rord88@daum.net
DocumentRoot "/home/apache/web"
ServerName rord.test.com
RedirectMatch "^/?(.*)" "https://rord.test.com/$1"
JKMountFile conf/rord.properties
<IfModule dir_module>
DirectoryIndex index.html
</IfModule>
<IfModule mod_headers.c>
Header set Content-Security-Policy: "default-src 'self' data: 'unsafe-inline' 'unsafe-eval' *"
Header set X-Content-Type-Options: "nosniff"
Header set X-XSS-Protection: "1; mode=block"
Header always append X-Frame-Options SAMEORIGIN
Header always set Strict-Transport-Security "max-age=86400; includeSubDomains; preload"
</IfModule>
<IfModule mod_rewrite.c>
RewriteEngine on
RewriteCond %{REQUEST_METHOD} !^(GET|POST)
RewriteRule .* - [R=403,L]
</IfModule>
<Directory "/home/apache/web">
Options -Indexes +FollowSymLinks
AllowOverride AuthConfig
LimitRequestBody 104857600
<LimitExcept GET POST>
Order deny,allow
Deny from all
</LimitExcept>
</Directory>
#ProxyPreserveHost On
#ProxyRequests off
#ProxyPass "/main" "http://localhost:80/"
ErrorLog "logs/error_log/rord.test.com-error_log"
CustomLog "logs/access_log/rord.test.com-access_log" common
</VirtualHost>
vi ${APP_DIR}/conf/extra/httpd-ssl.conf
##
## SSL Global Context
##
## All SSL configuration in this context applies both to
## the main server and all SSL-enabled virtual hosts.
##
SSLProxyCipherSuite HIGH:MEDIUM:!MD5!EXP:!NULL:!LOW:!ADH:!aNULL:!RC4
SSLHonorCipherOrder on
#SSLPassPhraseDialog builtin
SSLPassPhraseDialog exec:/home/apache/apache/ssl_private/ssl_pwd.sh
SSLSessionCache "shmcb:/home/apache/apache/logs/ssl_scache(512000)"
SSLSessionCacheTimeout 300
SSLUseStapling On
SSLStaplingResponderTimeout 5
SSLStaplingReturnResponderErrors off
SSLStaplingCache "shmcb:/home/apache/apache/logs/ssl_stapling(128000)"
SSLStaplingStandardCacheTimeout 3600
SSLStaplingErrorCacheTimeout 600
##
## SSL Virtual Host Context
##
SetEnvIf Request_URI "favicon.ico" do_not_log
LogFormat "%t %h %{SSL_PROTOCOL}x %{SSL_CIPHER}x \"%r\" %b %T \"%{Referer}i\" \"%{User-Agent}i\"" ssl_common
#--------------------------
#- host : rord.test.com
#--------------------------
<VirtualHost *:443>
ServerAdmin rord88@daum.net
DocumentRoot "/home/apache/web"
ServerName rord.test.com
JKMountFile conf/rord.properties
# enable HTTP/2, if available
Protocols h2 http/1.1
<IfModule mod_headers.c>
Header set Content-Security-Policy: "default-src 'self' data: 'unsafe-inline' 'unsafe-eval' *"
Header set X-Content-Type-Options: "nosniff"
Header set X-XSS-Protection: "1; mode=block"
Header always append X-Frame-Options SAMEORIGIN
Header always set Strict-Transport-Security "max-age=63072000; includeSubDomains; preload"
</IfModule>
<IfModule mod_rewrite.c>
RewriteEngine on
RewriteCond %{REQUEST_METHOD} !^(GET|POST)
RewriteRule .* - [R=403,L]
</IfModule>
<Directory "/home/apache/web">
Options -Indexes +FollowSymLinks
AllowOverride AuthConfig
LimitRequestBody 104857600
<LimitExcept GET POST>
Order deny,allow
Deny from all
</LimitExcept>
</Directory>
<IfModule dir_module>
DirectoryIndex index.html session.jsp
</IfModule>
#ProxyPreserveHost On
#ProxyRequests off
#ProxyPass /main https://localhost:443/
TransferLog "logs/ssl/rord.test.com-ssl-access_log"
ErrorLog "logs/ssl/rord.test.com-ssl-error_log"
SSLEngine on
SSLProtocol all -SSLv2 -SSLv3
SSLCipherSuite ECDHE-ECDSA-CHACHA20-POLY1305:ECDHE-RSA-CHACHA20-POLY1305:ECDHE-ECDSA-AES128-GCM-SHA256:ECDHE-RSA-AES128-GCM-SHA256:ECDHE-ECDSA-AES256-GCM-SHA384:ECDHE-RSA-AES256-GCM-SHA384:DHE-RSA-AES128-GCM-SHA256:DHE-RSA-AES256-GCM-SHA384:ECDHE-ECDSA-AES128-SHA256:ECDHE-RSA-AES128-SHA256:ECDHE-ECDSA-AES128-SHA:ECDHE-RSA-AES256-SHA384:ECDHE-RSA-AES128-SHA:ECDHE-ECDSA-AES256-SHA384:ECDHE-ECDSA-AES256-SHA:ECDHE-RSA-AES256-SHA:DHE-RSA-AES128-SHA256:DHE-RSA-AES128-SHA:DHE-RSA-AES256-SHA256:DHE-RSA-AES256-SHA:ECDHE-ECDSA-DES-CBC3-SHA:ECDHE-RSA-DES-CBC3-SHA:EDH-RSA-DES-CBC3-SHA:AES128-GCM-SHA256:AES256-GCM-SHA384:AES128-SHA256:AES256-SHA256:AES128-SHA:AES256-SHA:DES-CBC3-SHA:!DSS
SSLHonorCipherOrder Off
SSLCompression off
SSLSessionTickets off
SSLCertificateFile "/home/apache/apache/ssl_private/certs/rord_test_com.crt"
SSLCertificateKeyFile "/home/apache/apache/ssl_private/certs/rord_test_com.key"
#SSLCertificateChainFile "/home/apache/apache/ssl_private/certs/ChainCA.crt"
<FilesMatch "\.(cgi|shtml|phtml|php)$">
SSLOptions +StdEnvVars
</FilesMatch>
<Directory "/apache/apache24/cgi-bin">
SSLOptions +StdEnvVars
</Directory>
BrowserMatch "MSIE [2-5]" \
nokeepalive ssl-unclean-shutdown \
downgrade-1.0 force-response-1.0
</VirtualHost>
vi ${APP_DIR}/conf/extra/mod_jk.conf
# mod_jk.conf
#
# Required modules: mod_jk.so
# You may use the command line Configuration.
#
#
<IfModule jk_module>
#<IfModule mod_jk.c>
# Add the module (activate this lne for Apache 1.3)
# AddModule mod_jk.c
# Where to find workers.properties
JkWorkersFile conf/workers.properties
# Where to put jk shared memory
JkShmFile logs/mod_jk.shm
# Where to put jk logs
#JkLogFile logs/jk_log/mod_jk.log
JkLogFile "|/home/apache/apache/bin/rotatelogs /home/apache/apache/logs/jk_log/mod_jk.log 86400"
# Set the jk log level [debug/error/info]
JkLogLevel info
# Set the jk log format
#JKLogStampFormat "[%a %b %d %H:%M:%S %Y]"
JkLogStampFormat "[%y-%m-%d %H:%M:%S.%Q] "
#URI pattern Setting Files
#JKMountFile conf/uriworkermap.properties
</IfModule>
vi ${APP_DIR}/conf/workers.properties
# The advanced router LB worker
worker.list=rordlb,jkstatus
worker.rordlb.type=lb
worker.rordlb.retries=2
worker.rordlb.method=Session
worker.rordlb.sticky_session=true
worker.rordlb.balance_workers=rord11,rord12
# Define a 'jkstatus' worker using status
worker.jkstatus.type=status
# Define the Template worker setting
worker.template.type=ajp13
worker.template.lbfactor=1
worker.template.socket_timeout=300
worker.template.socket_keepalive=true
#worker.template.connect_timeout=30000
worker.template.recovery_options=7
worker.template.ping_mode=A
worker.template.ping_timeout=10000
worker.template.connection_pool_size=500
worker.template.connection_pool_minsize=300
worker.template.connection_pool_timeout=60
# Define the first member worker
worker.rord11.reference=worker.template
worker.rord11.host=172.31.43.101
worker.rord11.port=9109
worker.rord11.route=rord11
# Define the second member worker
worker.rord12.reference=worker.template
worker.rord12.host=172.31.43.101
worker.rord12.port=9209
worker.rord12.route=rord12
vi ${APP_DIR}/conf/rord.properties
## Mapping the ALL URI
/*.jsp=rordlb
/*.do=rordlb
/*.json=rordlb
/*.xmldo=rordlb
/*.htmdo=rordlb
/*.action=rordlb
/*.pop=rordlb
/*.ifrm=rordlb
최적화를 위해 front에 위치한 WEB영역에서 APP의 경량화 또는 WAS영역 서비스로직 단축 등 여러 기안이 있음.
1. mod_deflate 2. gzip expression 위 기안은 gzip을 이용한 LZ77알고리즘 기반의 web서버설정이며, 선/후 압축의 차이.
[mod_deflate] http compression 기술로 분류 되어 있으며, client와 server간의 통신을 이용하여 사용자 브라우저에서 gzip압축/해제지원 여부를 확인 후, web서버에서 사용자로부터 호출된 자원을 gzip으로 자동 압축하여 사용자에게 전송시킴. 이점으로 전송하는 사이즈가 작아지는 만큼 속도가 빨라지나, 단점으로 압축률설정에 따른 서버cpu사용률이 증가 할 수 있다는 점.
mod_deflate를 사용하기 위해서는 DSO(Dynamic Shared Object)를 web(apache) httpd.conf에 등록필요.
